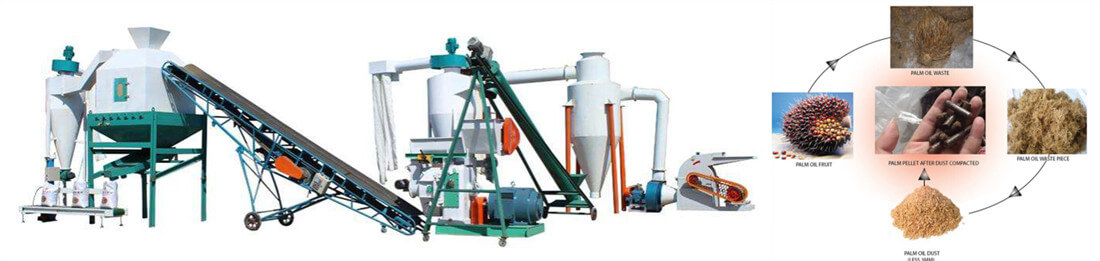

1.5T/H Palm Waste Biomass Pellet Plant

Palm waste biomass pellets production process includes chipping, crushing, drying, pelleting, cooling and packaging. The machines in 1.5t/h palm waste biomass pellet plant are chipper, crusher, dryer, pelletizer, cooler and packer.

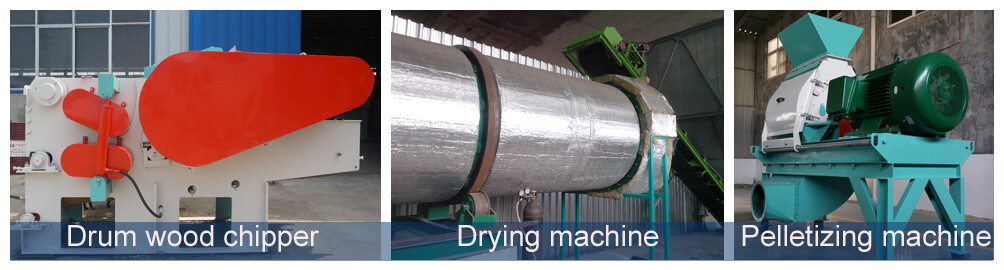

BX215 Drum Wood Chipper

Drum wood chipper is an ideal choice for processing large-scale biomass materials into small pieces for pelletizing. This wood chipper is mainly composed of base, knife roller, feed roller and belt conveyor. The hydraulic pressure system is also adopted for this machine. The base is made up of high-strength steel so as to support the whole body. Two blades are equipped for the knife roller for cutting materials. Due to the hydraulic pressure system, the feed roller can be adjusted according to the thickness of different raw materials.

ZW60B Water Drop Hammer Mill

Water drop hammer mill gets the name due to the water-drop structure of its grinding chamber which can solve circulation problems during pulverizing process. It is widely used to grind many kinds of biomass materials by large and medium sized pellet plants.
During this step, the materials firstly enter into the hammer mill via the upper inlet, then get impacted by the hammer with a high rotate speed, and gradually become small sized particles. The smaller sized particles are discharged through the screen by centrifugal force and air flow; while the bigger particles are still left within the sieve, and they will be sequentially blown and crushed by the hammer.

GX1500 Rotary Dryer

There are mainly two types of dryer, namely rotary dryer and pipe dryer. In this line, the rotary dryer is adopted. With this dryer, the moisture of raw materials can be reduced , thus becoming suitable for producing briquettes and pellets.

Features

1.With higher efficiency but low energy cost.
2.Stably and reliably operated.
3.With higher overloading capacity.
4.Resistant to higher temperature.
