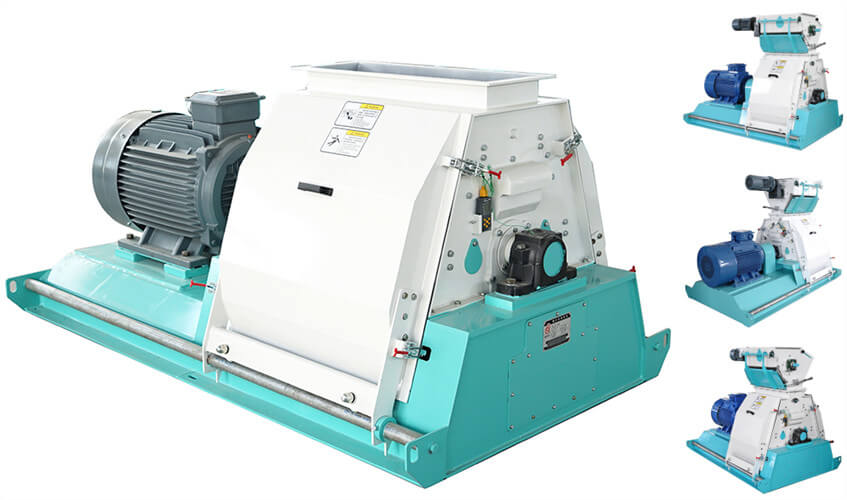

Wide Chamber Feed Hammer Mill

Wide Chamber Feed Hammer Mill Introduction

As a universal type feed grinding machine, wide chamber feed hammer mill is often used for fine grinding. With stable performance, it is widely used in small and medium sized feed and food processing industries for raw material grinding. The fineness of the end particles can reach over 50 mesh, which has a crucial effect on the quality of final feed pellets produced by feed pellet mill.

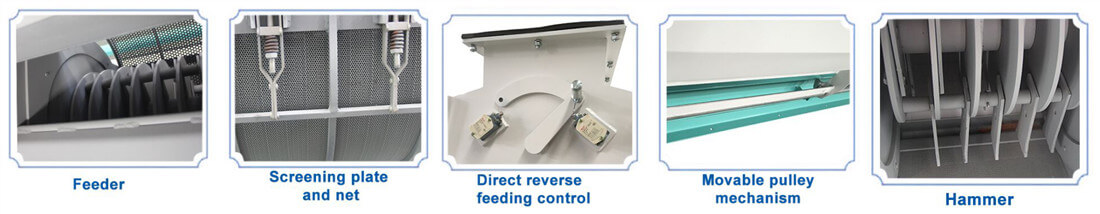

Features of Wide Chamber Feed Hammer Mill

1. Overall base design, high structural strength and attractive appearance.
2. Adopt direct-connected transmission and advanced serpentine spring coupling. Scientific and reasonable arrangement of hammer and clearance between hammer and screen ensure uniform fineness of the final products.
3. Twice strike technology is assembled in the cast iron grinding chamber, high abrasive resistance and small vibration.
4. Equipped with imported high quality bearings and SKF bearing pedestal, low temperature rising when working.
5. A variety of screen sieve size is available to choose. Quick-starting door opening device and frame-type screen pressing mechanism, fast to change the new screen, easy to operate and convenient to maintain.
6. The hammer is spray welding with carbon tungsten alloy, long service life.

Application of Feed Grinding Machine

* Grinding various particle raw materials for making animal feed pellets, like corn, sorghum, wheat, barley, beans, bean cake, etc.
* It can also be used for the crushing of materials in lower specific gravity, like herbage, marigold, etc. and fine grinding in the pharmaceutical industry.

Wide Chamber Feed Hammer Mill Technical Parameters
