Introduction of Dry-type Fish Feed Machine

Dry-type fish feed extruder is adopted to process various kinds of grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab, etc. Final pellets produced by fish feed extruders have a unique shape, good taste, and balanced nutrition. It is the ideal device for small and medium-size feed processing plants and aqua-farms.

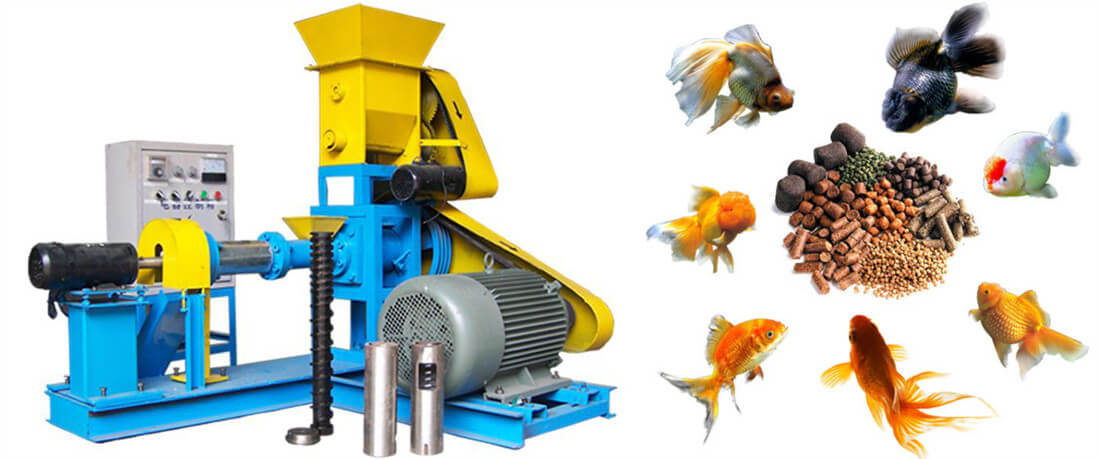

dry type fish feed extruder

Features of Dry Type Fish Feed Extruder

1. This fish feed extruder can produce both floating and sinking aqua feed pellets by adjusting feed formulations.
2. The sizes and shapes of the final pellets can be varied by changing the extruding molds.
3. The floating time of final feed pellets can also be adjusted by the extrusion degree adjustment.
4. During the pelletizing process, salmonellosis and bacterial infections can be killed by high temperatures and high pressure.
5. Final pellets are easier to digest and absorb because the pellets are of puffing type.
6. Screw sleeve of this fish feed extruder is made of en-chase alloy steel strip structure, which guarantees the machine has a long service life.

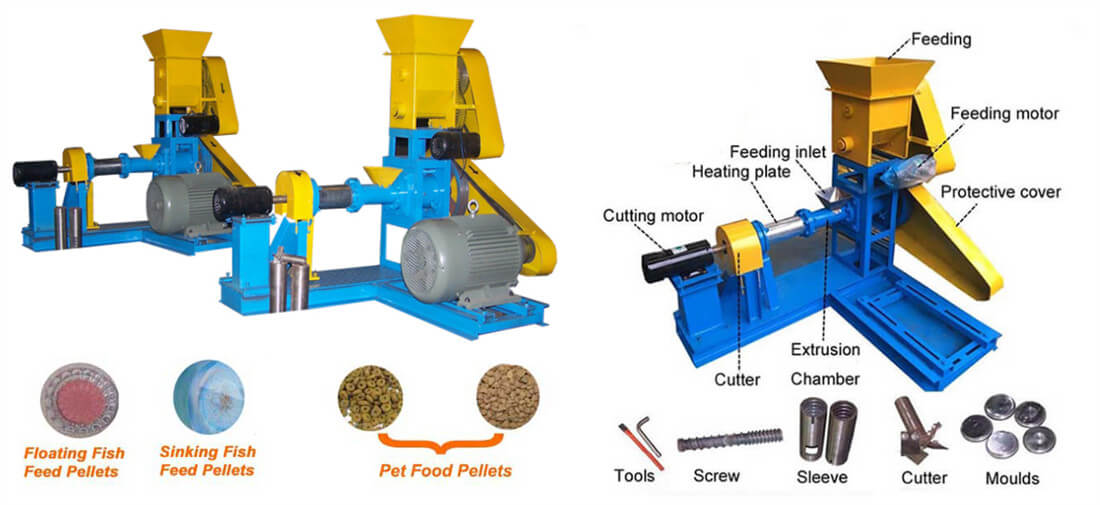

details features of aquatic feed extruder

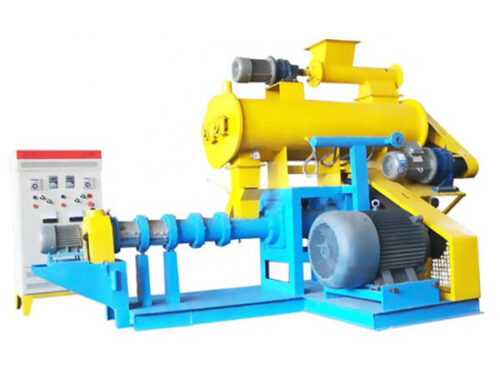

Differences Between Dry Type Fish Feed Extruder and Wet Type Fish Feed Extruder

1.Dry-type fish feed floating machine does not require the steam boiler, so the dry type fish feed extruder is cheaper and easier to operate.
2. Dry-type fish feed extruder is suitable for small and medium-size feed processing factory, while wet type fish feed extruder is preferred by medium and large feed processing factory because the capacity of dry type fish feed extruder is lower than the wet type.
3. Compared with dry type fish feed extruder, final pellets made by wet type fish feed extruder is more smooth and with better quality because the raw material is ripened and mixed evenly in the conditioner.

Tips to Pay Attention When Operating Dry Type Fish Feed Extruder

As pellets are with high temperatures after discharged from the machine, so standing before the discharging hole is prohibited. Operators should wear heat-resistant gloves to avoid scalding injury, besides, pay special attention to the running condition of the machine, if anything abnormal happens, stop and then repair.

Technical Data of Dry Type Fish Feed Machine

Model Capacity Main Power Feeding Power Screw Diameter Cutting Power
DGP50  0.06-0.08t/h  11kw 0.4kw φ50mm 0.4kw
DGP60 0.12-0.15t/h  15kw  0.4kw φ60mm 0.4kw
DGP70  0.18-0.25t/h  18.5kw  0.4kw φ70mm 0.4kw
DGP80  0.3-0.35t/h 22kw  0.4kw φ80mm 0.6kw
DGP90  0.4-0.45t/h  37kw  0.4kw  φ90mm 1.5kw
DGP120  0.5-0.7t/h  55kw  0.4kw φ120mm 2.2kw
DGP135  0.8-1.0t/h  75kw  0.4kw φ133mm 2.2kw
DGP160  1.2-1.5t/h  90kw 0.75-1.1kw  φ155mm  3.0kw
DGP200 1.8-2.0t/h 132kw 1.5kw  φ195mm 3.0-4.0kw
