Introduction of Wet Type Fish Feed Extruder

Wet type fish feed extruder is mainly used to produce all kinds of floating or sinking aqua feed for fish, shrimp, eel, bullfrog, etc. It can also be adopted to produce feed pellets for a pet, such as dogs, cats, and so on. Raw materials for this machine can be corn, soybean meal, rice barn, fish meal, rice barn, etc. The sizes of final feed pellets ranges from 0.9 to 15mm. Wet type fish feed extruder is mainly used in medium or large size feed pellet plants and aquaculture farms.

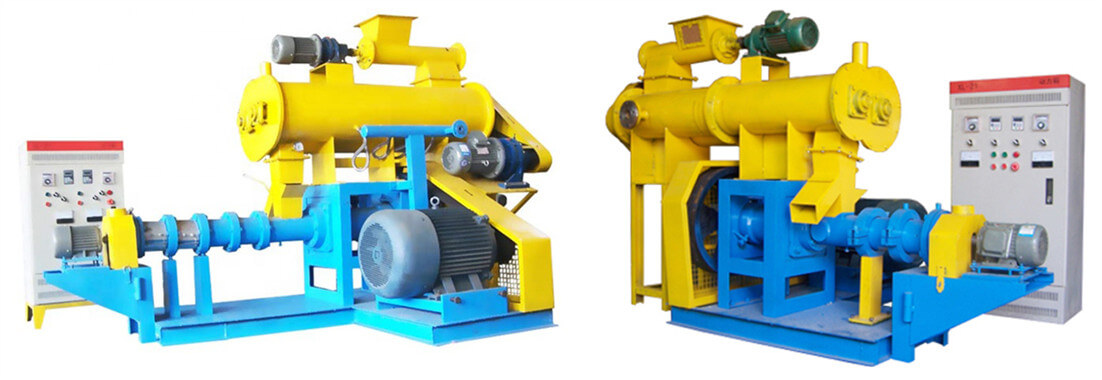

fish feed pellet machine

Features of Wet Type Fish Feed Extruder

1.The sizes of the feed pellets can be adjusted according to the customer requirement by changing different molds.
2. Floating pellets made by this wet type fish feed extruder have high quality which can float on the water for more than 12 hours.
3. Raw materials can be fully cooked as the boiler provides hot steam into the conditioner continuously, so the nutritional value of the feed pellets can be improved.
4. Key parts have a long service life as they are processed through vacuum quench treatment with high processing precision.
5. Salmonellosis and bacterial infections can be killed during the high temperature and high pressure pelletizing process, which can also make pellets easy to digest and absorb.
6. Operating parts adopt the humanization design which makes the machine easy to operate.

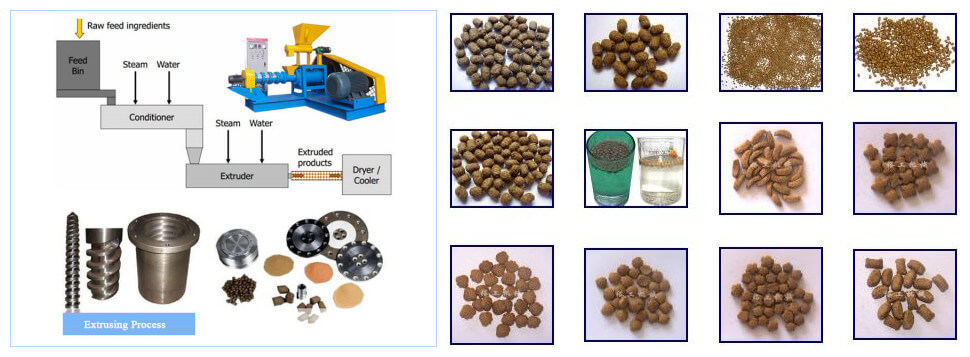

extruder machine for fish feed details

Fish Feed Pellets: Floating Type or Sinking Type?

Commercial fish feed pellets can be divided into two types: floating type and traditional sinking type. Both types can reach satisfactory growth, but some fish species prefer floating type, while others prefer sinking type, both have pros and cons. The floating type has some advantages compared with the sinking type. As we have mentioned above, salmonellosis and bacterial infections can be killed during the pelletizing process, so it can reduce disease infections. The remains of sinking pellets at the bottom of the tank will often go rot while floating type can retain its shape for long hours, so floating fish feed pellets can reduce waste. Besides, farmers can observe the feeding intensity and adjust feeding rates accordingly with floating fish feed pellets.

Parameters of Wet Type Fish Feed Extruder

Model Capacity Main Power Feeding Power Screw Diameter Cutting Power Conditioning Power
DSP60  0.18-0.20t/h 15kw  0.4kw  60mm  0.4kw  0.37kw
DSP70 0.30-0.35t/h 18.5kw 0.75kw  70mm 0.4kw 1.1-1.5kw
DSP80 0.40-0.45t/h  22kw 0.75kw  80mm 1.5kw  1.5-2.2kw
DSP90  0.50-0.55t/h  37kw  1.1kw  90mm 2.2kw 2.2-3.0kw
DSP120 0.7-0.8t/h  55kw  1.1kw  120mm 2.2kw 2.2-3.0kw
DSP135 1.0-1.2t/h  75kw 1.5kw  135mm 3.0kw 3.0-4.0kw
DSP160 1.8-2.0t/h  90kw  2.2kw  155mm  3.0kw 4.0kw
DSP200  3.0-5.0t/h  132kw 2.2kw  195mm  4.0kw  5.5kw
